Rear - BRAKE LINES

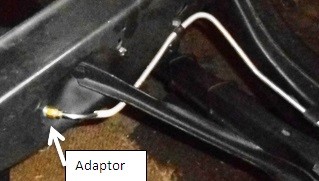

The long front to back line needed an adaptor fitting 7/16-24 inverted female to 3/8-24 inverted male from AutoZone “solid brass dual master cylinder adapter BLF-23C”.
I used a set of front drum brake hose frame mounts to Modify and mount on the rear to attach the rear brake lines to, and hammered them flat.

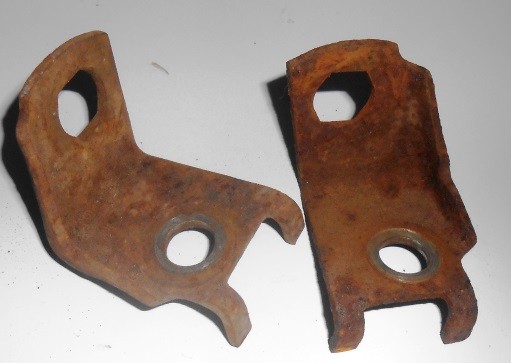

BEFORE

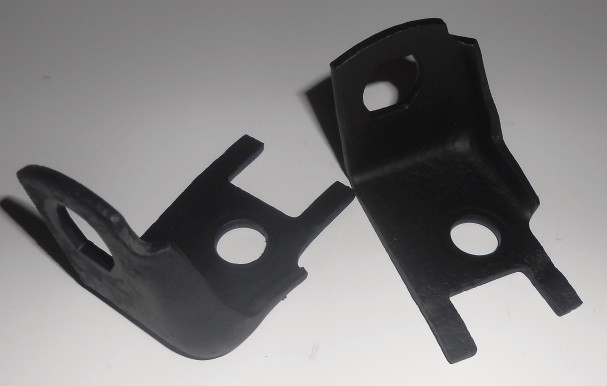

AFTER

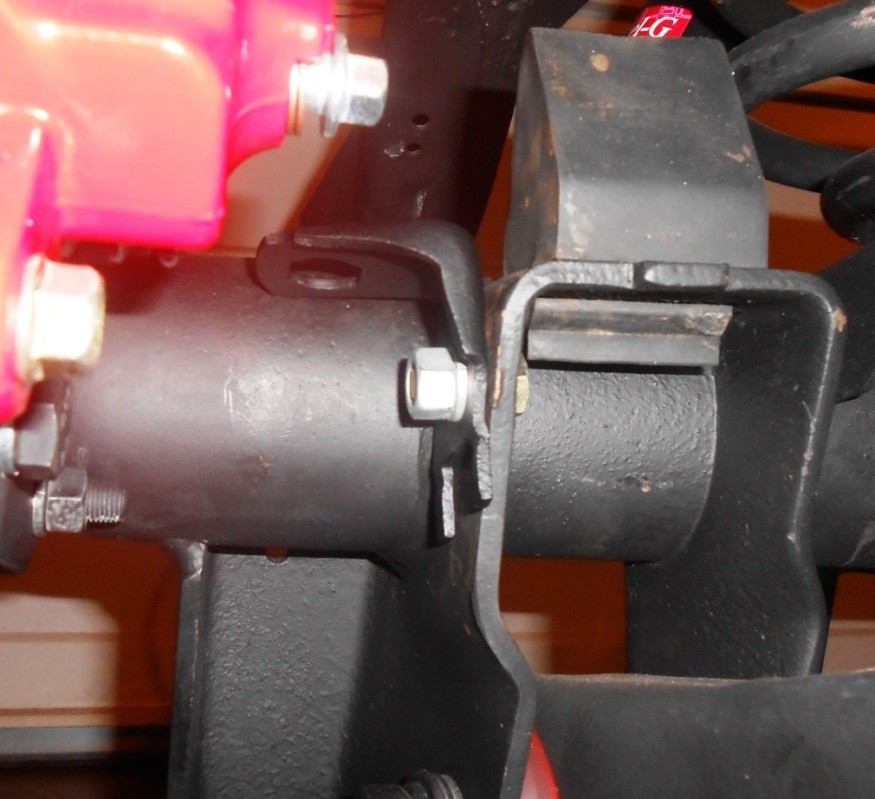

This is the bracket bolted to the existing hole on the bumper bracket on the rear tube.
Lines: (AN-3, 12” long, stainless steel braided hoses ST X ST banjo 3/8”-10M N C)

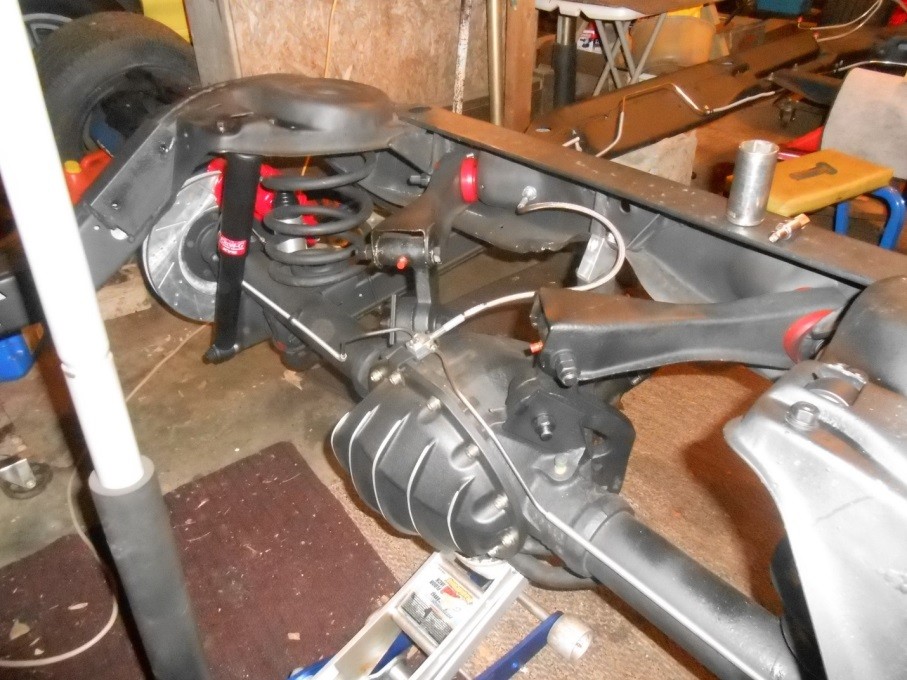

Had to bend the rear stainless lines to get them where they needed to be. I reused the factory rear center hose mount to add the steel braided flex line from rear housing to the frame.
